Lutron Drapery Track Systems

Wired power

Custom drapery track systems electronically operate pinch pleat or ripplefold curtains, powered by Lutron Sivoia QS. You can explore our fabric gallery or  use your own fabric material on the drapery tracks . The system allow for tracks up to 30 ft long, track splicing, 90° curves, single or multi-bend curved tracks, manual-open override, and much more. Lutron's Drapery Track System can be used in a residential and commercial applications. Connect with one of our Local Lutron experts today.

Enjoy The Ultimate Smart-Home Experience

* All pictures owned by Lutron

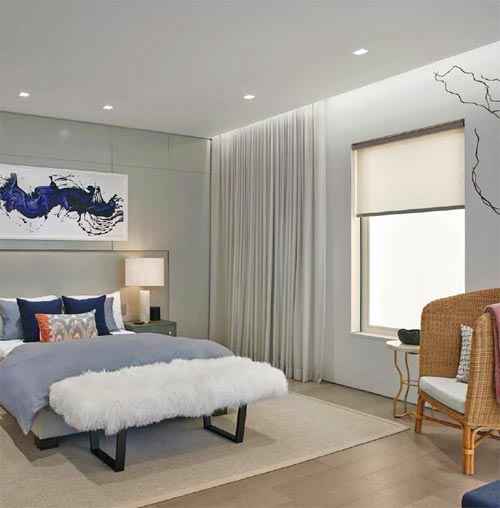

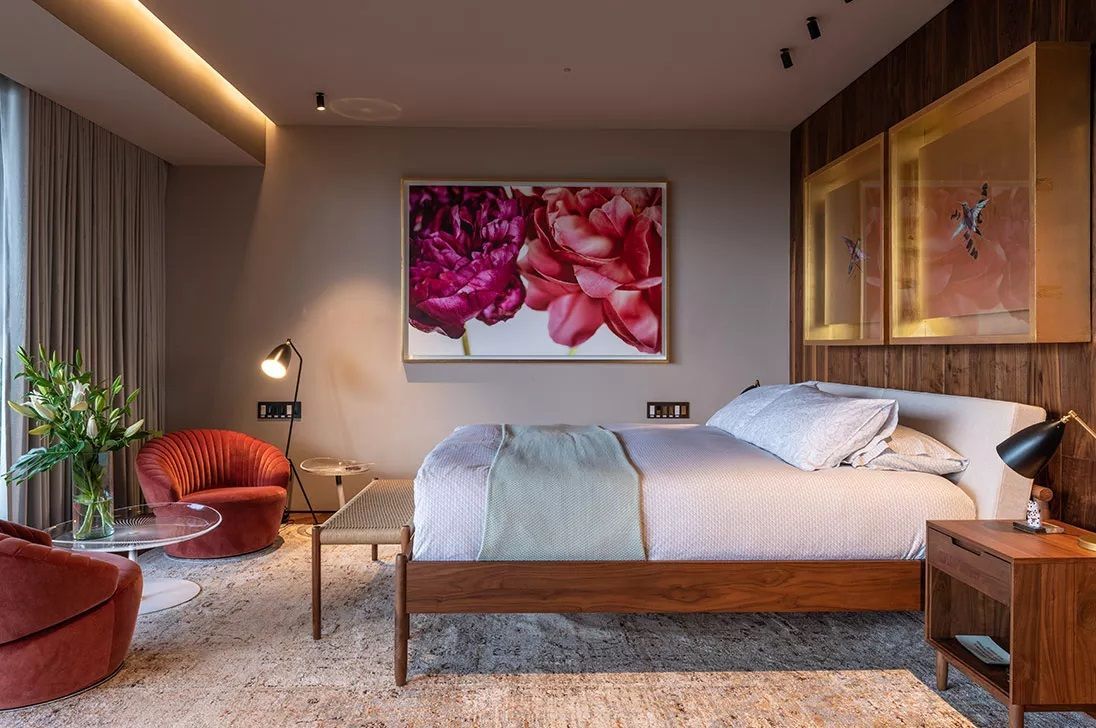

Lutron Motorized Drapery Track System recessed into the ceiling in a modern bedroom Irvine

Curtain Track Mounting Options

We offer both wall or ceiling mount options for your motorized curtain track. Tracks can be also be mounted in a cove or recessed into the ceiling as seen in the picture.

Lutron offers single, dual, curved, single-tandem and dual-tandem drapery track systems in 3 different drive options, each with different capacities.
System Capacities
Lutron Motorized Drapery Straight Track System Irvine

Straight Track

Button
Lutron Motorized Drapery Curved Track System Irvine
Lutron Motorized Drapery 90 Degree Track System Irvine

90° Degree Track

Button

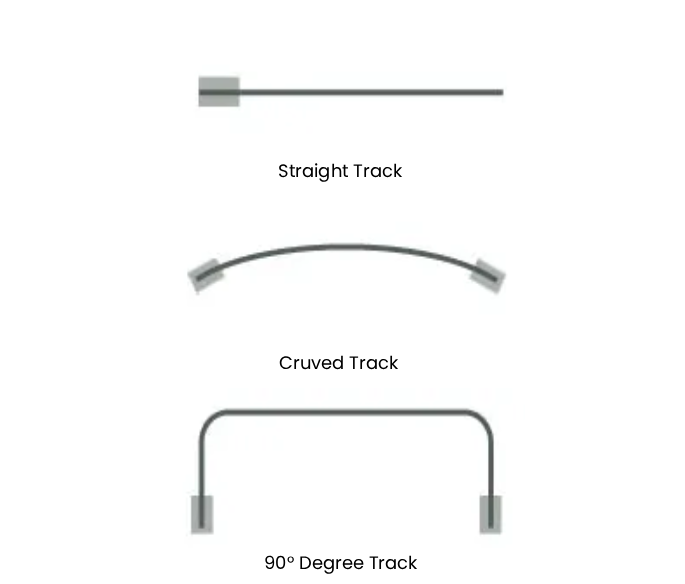

Curtain Track Options

Lutron has straight tracks, curved tracks, single or multi-bend curved tracks, and many custom drapery tracks available for your project.

  • Straight Drapery Track

    The straight track system is available in the following configurations:

    • Single or dual track
    • Standard single track with lengths up to 18 ft; up to 30 ft spliced; up to 60 ft for spliced, tandem systems
    • Right draw, center draw, left draw, and tandem systems (center draw)

  • Curved Drapery Track

    Curved curtain tracks are available in a standard arc or  can be custom-curved to fit a bay window, curved wall, or many other special applications.

    • Standard curtain arc: 90° bend with 20 in. (0.5 m) radius
    • Custom curtain arc: up to 90° bends are possible; curved radius must be 20 in. (0.5 m) or greater.
    • Single draw and center draw versions available
Lutron Motorized Ripple Fold Curtain Track Irvine

Ripplefold Curtains

Button

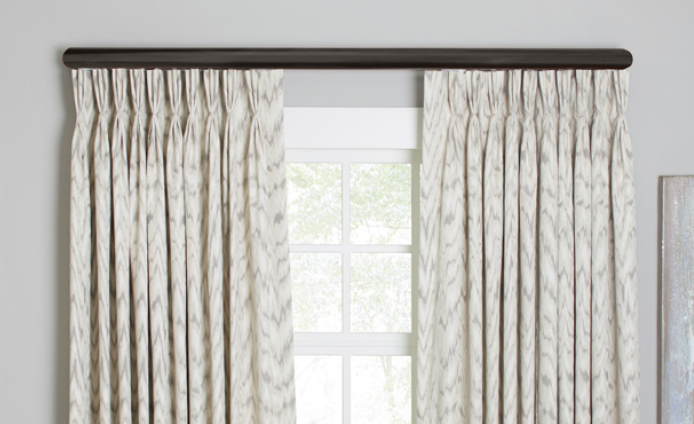

Lutron Motorized Pinch Pleat Curtain Track Irvine

Pinch Pleat Curtains

Button

Drapery Pleat Styles

Lutron drapery track systems electronically operate ripplefold curtains and pinch pleat curtains. Elegantly, quietly and conveniently control daylight.

  • Ripplefold Drapery Style

    Ripplefold drapery style is named for their soft ripple-like folds created by the fabric as it hangs from the track. The finished look with soft waves is a popular choice for modern interiors. The drapery is snapped directly to the carriers on the track. Lutron ripplefold tracks are available in three fullness factors: 80%, 100% and 120%. Fullness of the curtains is based on your selected carrier spacing.

  • Pinch Pleat Drapery Style

    Pinch pleat drapery style is a classic, highly versatile, traditional look that never goes out of style. It's named for the pleated look created at the top of the curtain by pinched gatherings of the fabric. Pins on the back of the drapery are simply looped through the carriers on the track when installed. Our recommendation for best performance would be to place a drapery hook setting of 1/2 inch from the top of the curtain.

Lutron Motorized Curtain Track Left Draw Irvine
Lutron Motorized Curtain Track Right Draw Irvine
Lutron Motorized Curtain Track Center Draw Irvine

Curtain Draw Style

We have many curtain draw styles available for you to choose if you have a preference in which direction your curtains should be opened. The style chosen below will decide where the stack back of the drapery will lay.

  • Left Curtain Draw

    If you prefer to draw you curtain to the left, the drive will be located on the left-hand side, and the carrier opens drapery from the right toward the left. (Drive remains hidden behind the stack back.)

  • Right Curtain Draw

    If you prefer to draw your curtains to the right, the drive is located on the right-hand side, and the carrier opens drapery from the left toward the right. (Drive remains hidden behind the stackback.)

  • Center Curtain Draw

    If you prefer to draw your curtains to the center, one drive uses two carriers to open the drapery from the center to the left and right simultaneously. (Drive can be located on the left or right, while remaining hidden behind the stack back.)

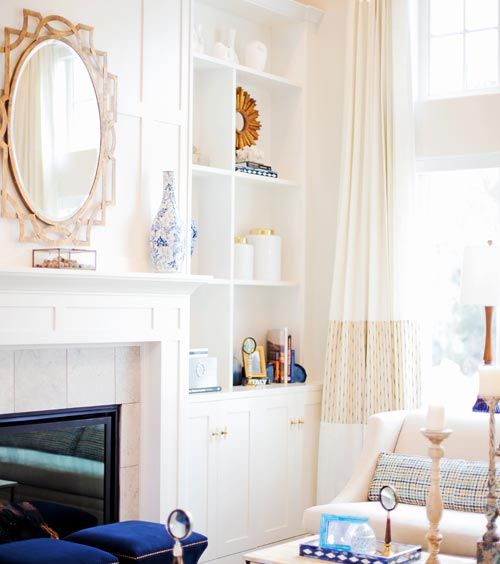

Lutron Motorized Curtain Track System Contemporary Living Room Irvine

Manually Open Curtains

Lutron drapery track system are available with a manual open carrier for curtain fabric panels weighing up to 70 lbs. It uses a patented spring release system that is field-adjustable customized to your needs. When the curtain is manually pulled, the master carrier releases allowing the drapery to open.

Benefits of having a manual open feature on your motorized curtains:
  • Operate your motorized curtains during a power outage
  • Prevent damage to your track system if someone pulls open your drapery manually by accident
